Navigate to the Dialer Status and setup - Dialer Setup - SIP Providers Screen:
Menu -> Dialer -> Dialer Status and setup -> Dialer Setup -> SIP Providers
Purpose of the Dialer Status and setup - Dialer Setup - SIP Providers Screen:
This screen is used to create and tune up SIP providers to be used by Dialer Pro dialer.

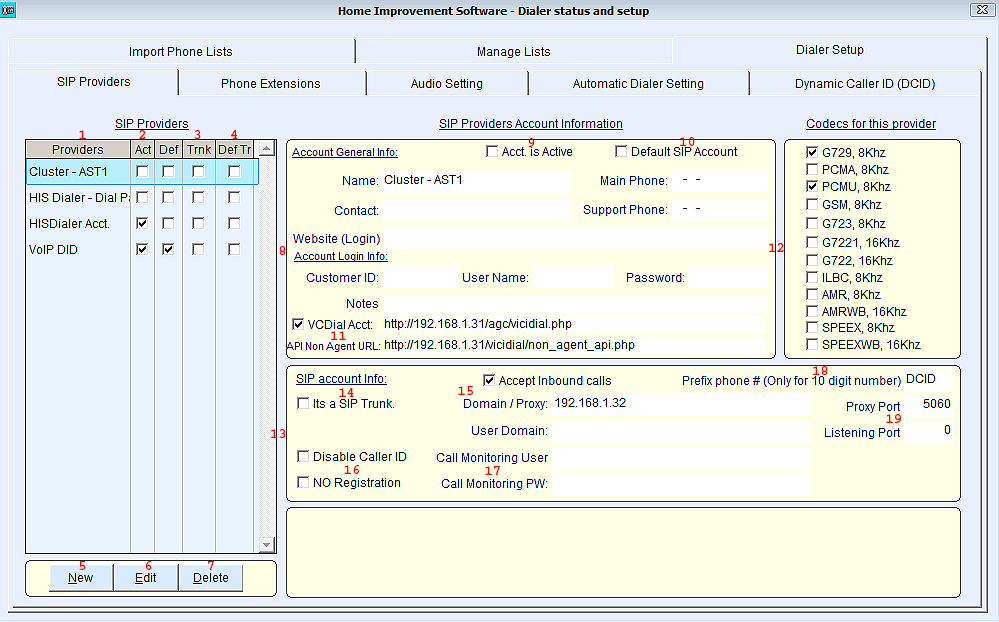

What you see in the Dialer Status and setup - Dialer Setup - SIP Providers Screen:
-
Providers - available SIP providers column.
-
Act - this checkbox shows if the SIP provider is active or inactive.
Def - Default account.
-
Trnk - Indicate SIP account.
-
Def Tr - Default SIP trunk account.
-
New - create a new SIP provider.
-
Edit - edit the selected SIP provider.
-
Delete - delete the selected SIP provider.
-
Account General Info - contains the selected SIP provider information and setup.
-
Acct. is Active - checkbox is used to make the SIP provider active / inactive.
-
-
VCDial Acct - you need to check this field when a VCdial is the dialing engine of Dialer Pro.
-
Codecs list - contains the various codecs that is used to communicate by the selected SIP provider.
-
SIP Account info - contains SIP account details and tune up.
-
Its a SIP Trunk - check if this is a SIP trunk account.
-
Accept inbound calls - requires a valid inbound phone number.
Domain / Proxy - Type in the domain of your SIP provider.
-
NO Registration - Check when no registration required.
-
Call Monitoring User - the ViCidial user username that is used for listening and barging.
Call Monitoring PW - the ViCidial user password that is used for listening and barging.
-
Prefix phone # - Your SIP provider prefix, if required, or use DCID to turn on dynamic caller ID.
-
Proxy Port - The port your SIP provider is listening on.
Listening Port - On what port the workstation is listening. Keep zero for dynamic selection.
